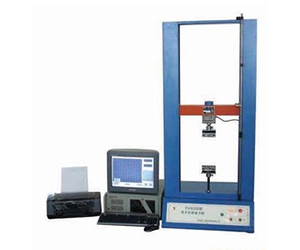

YG026C type electronic strength tester
YG026C type Electronic Fabric Strength Tester can be used to measure a variety of cotton, wool, flax, Chemical fiber and other non-Fabric and Fabric, other composite materials (bags, etc.) and wire tensile strength and elongation at break, and tear peeling, bursting strength and seam testing and other procedures of disengagement.
Performance in line: ISO13934, GB / T3923.1.2, GB / T3917.2.3 like.
This machine adopts computer control, Chinese LCD interface, user-friendly operator interface dialogue design, simple operation, data can be displayed and printed, but also matching printer output. After an optional PC can be connected to communicate with the instrument, display and print the tensile curves.
Product main parameters:
1. type number: CRE type
2. Load test range and accuracy:
1. 0-500N
2. 0-1000N
3. 0-3000N
4. 0-5000N
5. 0-10000N
3. Clamping distance: (25 ~ 500) mm stepless
4. Holder effective width: 95mm
5. Tensile speed: (20 ~ 600) mm / min, stepless precision <± 2%
6. Data output:
(1) display output
(2) Individual and statistical printouts
7. The batch has test data (individual and statistics) save and query functions.
8. Instrument functions:
Tensile test peel test
Elastic recovery test tear test
Billiards bursting test (need to reprovision ball bursting fixture)
Yarn tensile tests (need to reprovision yarn fixture)
Seam disengagement test
The instrument is equipped Lenovo tensile curve display, and print data
